AJ65SBTB1-8D 8 Input 24Vdc CC Link Module100% Mitsubishi original

Name: AJ65SBTB18D 8 Input 24Vdc CC Link Module100 Mitsubishi original
Brand: Mitsubishi
Price: 100 USD

China AJ65SBTB1-8D 8 Input 24Vdc CC Link Module100% Mitsubishi original factory

Brand Name : Mitsubishi

Model Number : AJ65SBTB1-8D

Certification : CE

Place of Origin : Made in Japan

MOQ : 1 pcs

Price : USD 100-200/pcs

Payment Terms : T/T

Supply Ability : 500pcs/week

Delivery Time : 3-7 days

Packaging Details : 100% Mitsubishi original package We make sure all parts must be original and new,unused.

Delivery Detail : Shipped in 3 days after payment

Condition : 100% Mitsubishi Original

Warranty : 1 Year

Contact Now

AJ65SBTB1-8D 8 Input 24Vdc CC Link Module100% Mitsubishi original

8-point digital input module - 24V d.c.

This remote module is intended to be installed near the control target.

The main advantages are reduced cabling and the capability of acquiring data and operation results of individual machine modules autonomously.

Technical specification
No. of inputs:	8
Isolation method:	Photocoupler
Rated input voltage:	24V d.c.
Rated input current:	Approx. 7mA
Operating voltage range:	19.2 to 26.4V d.c. (ripple ratio: within 5%)
ON voltage/ON current:	14V or higher/3.5mA or higher
OFF voltage/OFF current:	6V or lower/1.7mA or lower
Input resistance:	Approx. 3.3kΩ
Response time:
OFF—ON:	1.5ms or lower (when 24V d.c.)
ON—OFF:	1.5ms or lower (when 24V d.c.)
Wiring method for common:	8 point/common (2 points)
	(terminal block 1-wire type)
Input format:	Positive/negative common shared type
	(sink/source shared type)
No. of occupied stations:	1 station 32 points assignment (use 8 points)
I/O module power supply:
Voltage:	20.4 to 26.4V d.c. (ripple ratio: within 5%)
Current:	30mA or lower (when 24V d.c., all points ON)
Network speed:	Up to 10Mbps
Network distance:	Up to 1.2km

Features:

Up to 64 I/O modules with a maximum of 32 inputs or 32 outputs each
can be connected
Compact design which is tough and highly shock-resistant
Status indicator LEDs for the inputs
Modules can be positioned in a horizontal arrangement or one of four orientations
on a flat surface.
DIN rail or screw mounting

AJ65SBTB1-8D 8 Input 24Vdc CC Link Module100% Mitsubishi original

Shenzhen Hunt Electronics Co., Ltd.Always be here offer you the best price and good after-sales services.
Our advantage range:
1. Mitsubishi A,Q,L, FX-series PLC;
2. Mitsubishi Frequency Inverter FR-A700, FR-E700, FR-F700, FR-D700-series.
3. Mitsubishi HMI(Human Machine Interface) GT16, GT15, GT12, GT10,GT20-series
4. Mitsubishi servo motor J4, J3, J2S,JE series
FAQ:
1. Q: Does all products are original?
Yes, we dealed are all brand new and original products.
2. Q: How about the warranty?
We supply 1 year warranty
3. Q: What about delivery time?
Normally 1-3days
4. Q: How about the payment term?
T/T, Western union are welcome
Contact us:
Company name: Shenzhen Hunt Electronics co., Ltd.
Website: http://www.hunt-plc.com
TEL: 0086-755-21002862
Skype: nicole.tang_7
Email: nicole@huntplc.com

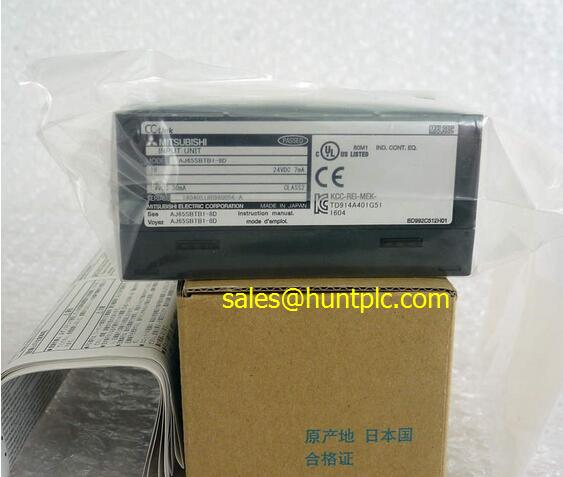

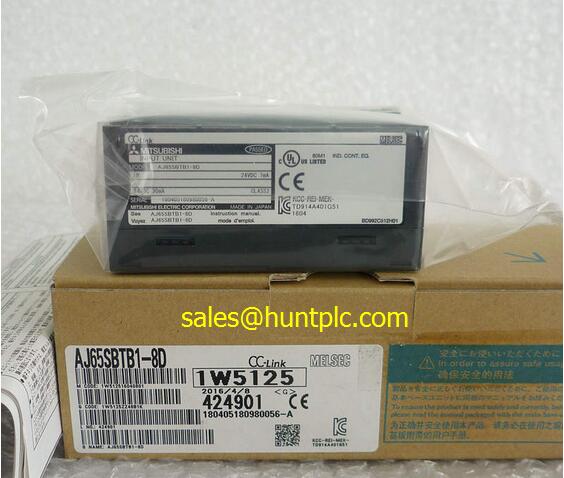

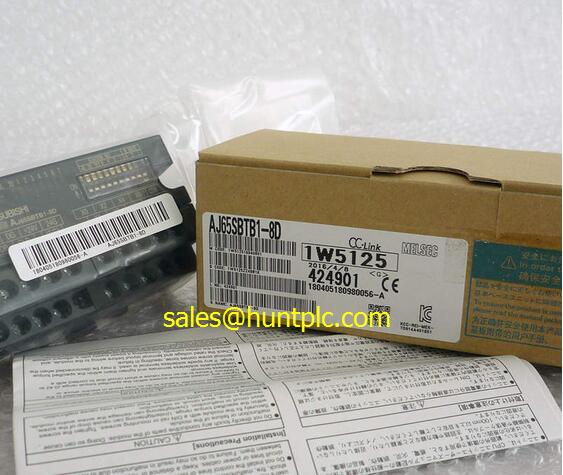

AJ65SBTB1-8D 8 Input 24Vdc CC Link Module100% Mitsubishi original Images
